	AN3010 Low Input Voltage PWM Step-Up DC/DC Converter Category: DC/DC(PWM/PFM) ⋅ Boost Rectified Type: SYNC 1CH Vin(Min)[V]: 0.8 Vin(Max)[V]: 5.5 Vout(Min)[V]: 1.8 Vout(Max)[V]: 5.5 Current[A]: 0.1 Freq[MHz]: 0.5 Efficiency: 94 % Package Type: SOT23-6L Remark: Comp/ADJ Application: Bluetooth Headsets ⋅ Medical Instruments ⋅ Smart Phones ⋅ Wireless Mice 更多資料收起資料
	AN3202 1MHz Step-Up PWM Converter with 5.5A Switch Current Category: DC/DC(PWM/PFM) ⋅ Boost Rectified Type: ASYN 1CH Vin(Min)[V]: 2.7 Vin(Max)[V]: 5.5 Vout(Min)[V]: - Vout(Max)[V]: 12 Current[A]: 5.5 Freq[MHz]: 1 Efficiency: 93 % Package Type: SOP8-EP Remark: Comp/ADJ Application: Chargers ⋅ Digital Cameras ⋅ Handheld Computers and PADs ⋅ LCD Displays ⋅ Portable Products 更多資料收起資料
	AN3203 1MHz Step-Up PWM Converter with 2.5A Switch Current Category: DC/DC(PWM/PFM) ⋅ Boost Rectified Type: ASYN 1CH Vin(Min)[V]: 2.7 Vin(Max)[V]: 5.5 Vout(Min)[V]: - Vout(Max)[V]: 18 Current[A]: 2.5 Freq[MHz]: 1 Efficiency: 91 % Package Type: SOT23-6L Remark: Comp/ADJ Application: Chargers ⋅ Digital Cameras ⋅ Handheld Computers and PADs ⋅ LCD Displays ⋅ Portable Products 更多資料收起資料
	AN4523 40V, 3A, 220kHz Asynchronous Step-Down Converter Category: Buck Rectified Type: ASYN 1CH Vin(Min)[V]: 9 Vin(Max)[V]: 40 Vout(Min)[V]: 0.8 Vout(Max)[V]: 20 Current[A]: 3 Freq[MHz]: 0.22 Efficiency: 93 % Package Type: SOP8-EP Remark: Pin-to-Pin ACT4523 Application: Automotive Industry ⋅ Car Charger ⋅ Rechargeable Portable Devices 更多資料收起資料
	AN6006 1.5MHz, 1A, High Efficiency PWM Step-Down DC/DC Converter Category: DC/DC(PWM/PFM) ⋅ Buck Rectified Type: SYNC 1CH Vin(Min)[V]: 2.5 Vin(Max)[V]: 5.5 Vout(Min)[V]: 0.6 Vout(Max)[V]: 5.5 Current[A]: 1 Freq[MHz]: 1.5 Efficiency: 95 % Package Type: SOT23-5L Remark: Comp/ADJ Application: Cellular and Smart Phones ⋅ Digital Still and Video Cameras ⋅ Microprocessors and DSP Core Supplies ⋅ Portable Navigation Device ⋅ Set Top Box ⋅ USB Dongle 更多資料收起資料
	AN6008 1.5MHz, 1.3A, High Efficiency PWM Step-Down DC/DC Category: DC/DC(PWM/PFM) ⋅ Buck Rectified Type: SYNC 1CH Vin(Min)[V]: 2.5 Vin(Max)[V]: 5.5 Vout(Min)[V]: 0.6 Vout(Max)[V]: 5.5 Current[A]: 1.3 Freq[MHz]: 1.5 Efficiency: 95 % Package Type: SOT23-5L Remark: Comp/ADJ/PSM Application: Cellular and Smart Phones ⋅ Digital Still and Video Cameras ⋅ Microprocessors and DSP Core Supplies ⋅ Portable Navigation Device ⋅ Set Top Box ⋅ USB Dongle 更多資料收起資料

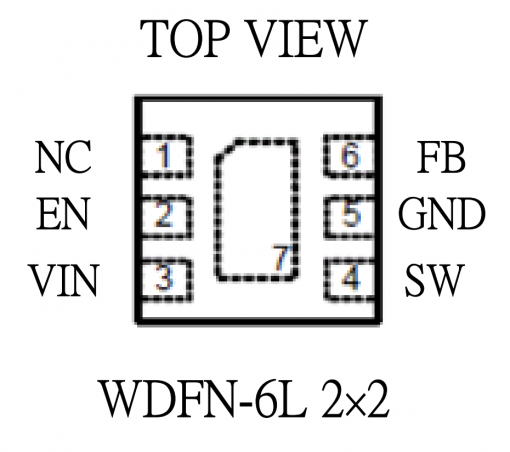

	AN6010 1.5MHz, 1.5A, High Efficiency PWM Step-Down DC/DC Converter Category: DC/DC(PWM/PFM) ⋅ Buck Rectified Type: SYNC 1CH Vin(Min)[V]: 2.5 Vin(Max)[V]: 5.5 Vout(Min)[V]: 0.6 Vout(Max)[V]: 5.5 Current[A]: 1.5 Freq[MHz]: 1.5 Efficiency: 95 % Package Type: DFN2X2-6L Remark: Comp/ADJ Application: Cellular and Smart Phones ⋅ Digital Still and Video Cameras ⋅ Microprocessors and DSP Core Supplies ⋅ Portable Navigation Device ⋅ Set Top Box ⋅ USB Dongle 更多資料收起資料
	AN6012 1.25MHz, 2A, High Efficiency PWM Step-Down DC/DC Converter Category: DC/DC(PWM/PFM) ⋅ Buck Rectified Type: SYNC 1CH Vin(Min)[V]: 2.7 Vin(Max)[V]: 5.5 Vout(Min)[V]: 0.8 Vout(Max)[V]: 5.5 Current[A]: 2 Freq[MHz]: 1.25 Efficiency: 95 % Package Type: SOP8-EP Remark: Comp/ADJ Application: Access-Point Router ⋅ ASIC/DSP/μP/FPGA Core and I/O Voltages ⋅ Cellular Base Stations ⋅ LCD TV ⋅ Networking and Telecommunications ⋅ Set Top Box 更多資料收起資料
	AN6013 1.25MHz, 3A, High Efficiency PWM Step-Down DC/DC Converter Category: DC/DC(PWM/PFM) ⋅ Buck Rectified Type: SYNC 1CH Vin(Min)[V]: 2.7 Vin(Max)[V]: 5.5 Vout(Min)[V]: 0.8 Vout(Max)[V]: 5.5 Current[A]: 3 Freq[MHz]: 1.25 Efficiency: 95 % Package Type: SOP8-EP Remark: Comp/ADJ Application: Access-Point Router ⋅ ASIC/DSP/μP/FPGA Core and I/O Voltages ⋅ Cellular Base Stations ⋅ LCD TV ⋅ Networking and Telecommunications ⋅ Set Top Box 更多資料收起資料
	AN6014 1.25MHz, 4A, High Efficiency PWM Step-Down DC/DC Converter Category: DC/DC(PWM/PFM) ⋅ Buck Rectified Type: SYNC 1CH Vin(Min)[V]: 2.7 Vin(Max)[V]: 5.5 Vout(Min)[V]: 0.5 Vout(Max)[V]: 5.5 Current[A]: 4 Freq[MHz]: 1.25 Efficiency: 95 % Package Type: SOP8-EP Remark: Comp/ADJ Application: Access-Point Router ⋅ ASIC/DSP/μP/FPGA Core and I/O Voltages ⋅ Cellular Base Stations ⋅ LCD TV ⋅ Networking and Telecommunications ⋅ Set Top Box 更多資料收起資料
