1.5MHz, 1.3A, High Efficiency PWM Step-Down DC/DC - AN6008

AN6008 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency. The internal switch and synchronous rectifier are integrated for high efficiency. External Schottky diodes are not required. The supply current is only 200μA during operation and drops to less than 1μA in shutdown. AN6008 can supply 1.3A of load current from 2.5V to 5.5V supply voltage. The output voltage can be regulated as low as 0.6V. The switching frequency is set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. It can run 100% duty cycle for low dropout application. AN6008 is available in a low profile SOT23-5 package.

AN6008

Rectified Type

SYNC 1CH

Vin(Min)[V]

2.5

Vin(Max)[V]

5.5

Vout(Min)[V]

0.6

Vout(Max)[V]

5.5

Current[A]

1.3

Freq(Min)[MHz]

Freq(Max)[MHz]

Freq(Typ)[MHz]

1.5

Efficiency[%]

95

Package Type

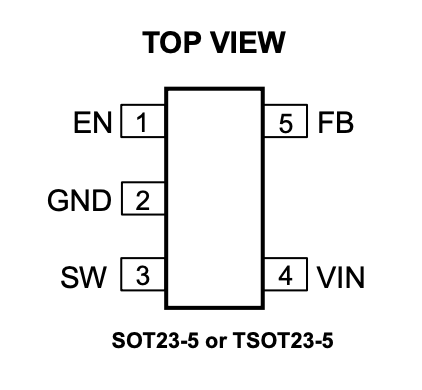

SOT23-5L
Remark
Comp/ADJ/PSM

特色功能

  • 2.5V to 5.5V Input Voltage Range
  • Adjustable Output Voltage as Low as 0.6V
  • High Efficiency: Up to 95%
  • 1.5MHz Constant Switching Frequency
  • 1.3A Available Load Current
  • 100% Duty Cycle in Dropout
  • Current Mode Control
  • Short Circuit Protection
  • Thermal Fault Protection
  • <0.1μA Shutdown Current
  • Space Saving 5-Pin SOT23-5 Package

應用範圍

  • Cellular and Smart Phones
  • Microprocessors and DSP Core Supplies
  • Set Top Box
  • USB Dongle
  • Digital Still and Video Cameras
  • Portable Navigation Device
