1.25MHz, 3A, High Efficiency PWM Step-Down DC/DC Converter - AN6013

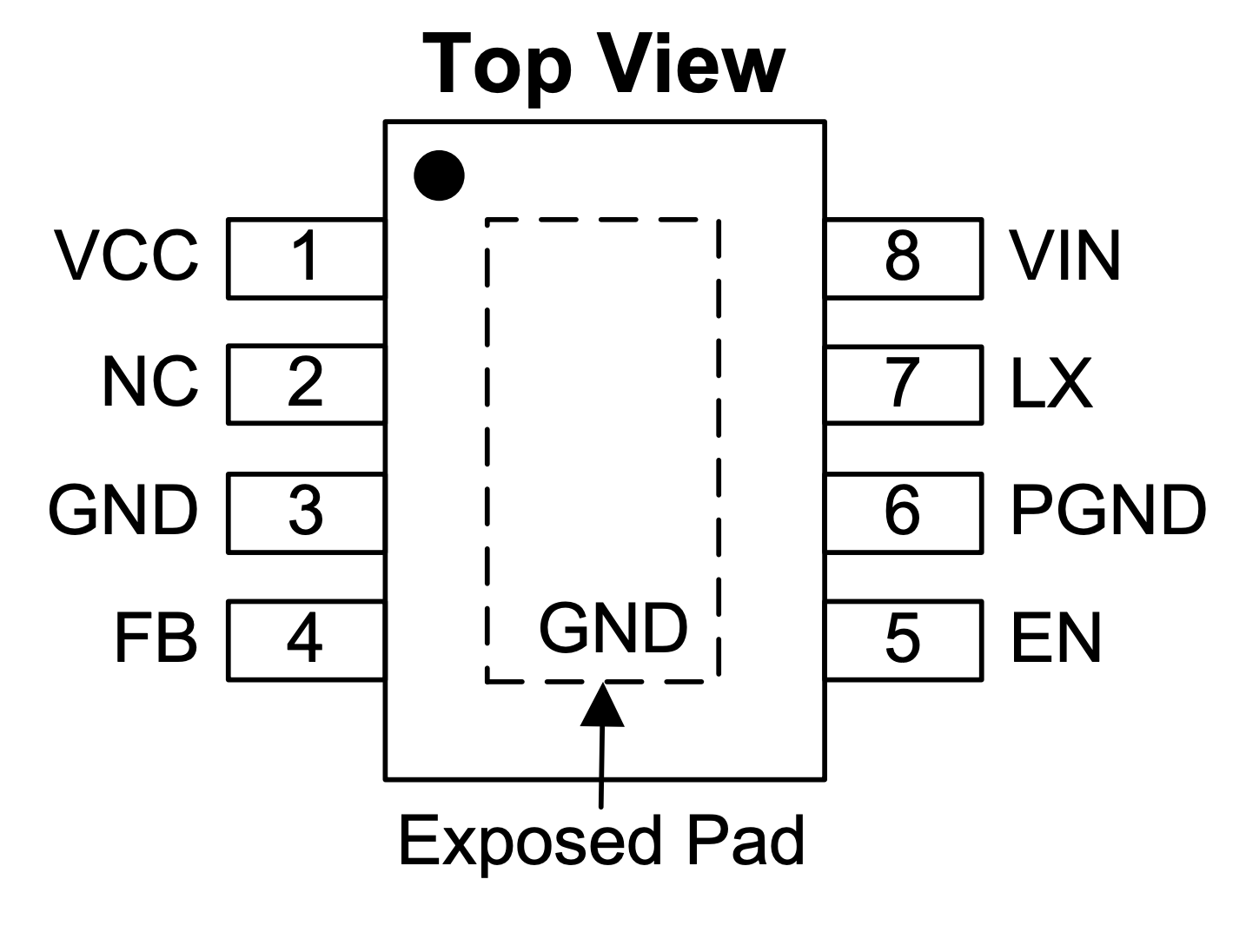

AN6013 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency. The internal switch and synchronous rectifier are integrated for high efficiency. AN6013 can supply 3A of load current from 2.7V to 5.5V supply voltage. The switching frequency is set at 1.25MHz, allowing the use of small surface mount inductors and capacitors. It can run 100% duty cycle for low dropout application. AN6013 is available in a SOP-8 package.

AN6013

Rectified Type

SYNC 1CH

Vin(Min)[V]

2.7

Vin(Max)[V]

5.5

Vout(Min)[V]

0.8

Vout(Max)[V]

5.5

Current[A]

3

Freq(Min)[MHz]

Freq(Max)[MHz]

Freq(Typ)[MHz]

1.25

Efficiency[%]

95

Package Type

SOP8-EP
Remark
Comp/ADJ

特色功能

  • 2.7V to 5.5V Input Voltage Range
  • High Efficiency: Up to 95%
  • 1.25MHz Constant Switching Frequency
  • 3A Available Load Current
  • 100% Duty Cycle in Dropout
  • Current Mode Control
  • Short Circuit Protection
  • Thermal Shutdown Protection
  • Thermal Enhanced SOP-8 Package

應用範圍

  • Set Top Box
  • LCD TV
  • ASIC/DSP/μP/FPGA Core and I/O Voltages
  • Access-Point Router
  • Cellular Base Stations
  • Networking and Telecommunications
