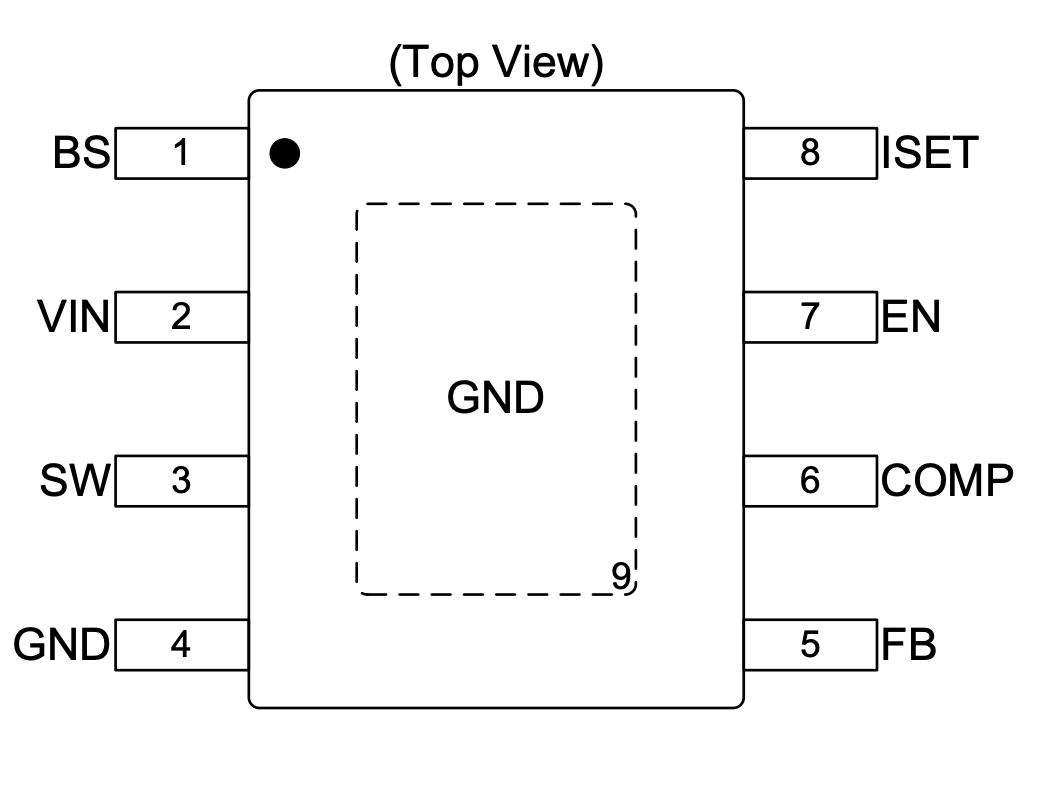

The AN6523 is a monolithic step-down switch mode converter with a built-in high-side power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The AN6523 is available in an SOP8-EP package, provides a very compact system solution and good thermal conductance.
Rectified Type
Vin(Min)[V]
Vin(Max)[V]
Vout(Min)[V]
Vout(Max)[V]
Current[A]
Freq(Max)[MHz]
–
Freq(Typ)[MHz]
Efficiency[%]
Package Type
