40V, 3A, 220kHz Asynchronous Step-Down Converter - AN6523

The AN6523 is a monolithic step-down switch mode converter with a built-in high-side power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The AN6523 is available in an SOP8-EP package, provides a very compact system solution and good thermal conductance.

AN6523

Rectified Type

ASYN 1CH

Vin(Min)[V]

9

Vin(Max)[V]

40

Vout(Min)[V]

0.8

Vout(Max)[V]

20

Current[A]

3

Freq(Max)[MHz]

Freq(Typ)[MHz]

0.22

Efficiency[%]

90

Package Type

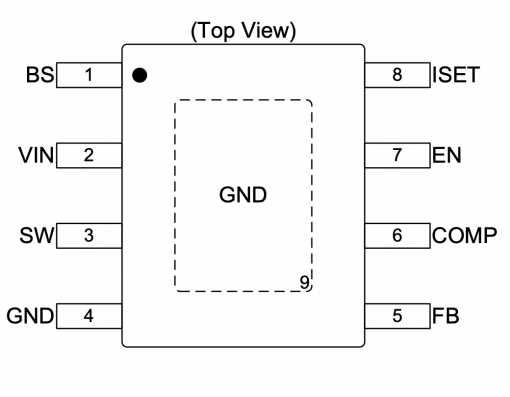

SOP8-EP
Remark
Pin-to-Pin ACT4523

Features

  • Wide Input Voltage from 9V to 40V
  • Up to 3A Output Current
  • Adjustable Output Voltage up to 12V
  • High Efficiency Up to 93%
  • Internal Soft-Start
  • Auto Recovery after Faults
  • Output Cord Voltage Drop Compensation
  • Programmable Over Current Setting
  • Over-Temperature Protection
  • Thermal Enhanced SOP-8 Package
  • RoHS Compliant

Application

  • Car Charger
  • Rechargeable Portable Devices
  • Automotive Industry
