24V,1.5A, 1.4MHZ,Asynchronous Step-Down DC/DC Converter - AN6359

The AN6359 is a monolithic step-down switch mode converter with a built-in power MOSFET. It achieves 1.5A peak output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The AN6359 requires a minimum number of readily available standard external components. The AN6359 is available in SOT23-6 packages.

AN6359

Rectified Type

ASYNC 1CH

Vin(Min)[V]

4.5

Vin(Max)[V]

24

Vout(Min)[V]

0.923

Vout(Max)[V]

19

Current[A]

1.5

Freq(Min)[MHz]

Freq(Max)[MHz]

Freq(Typ)[MHz]

1.4

Efficiency[%]

95

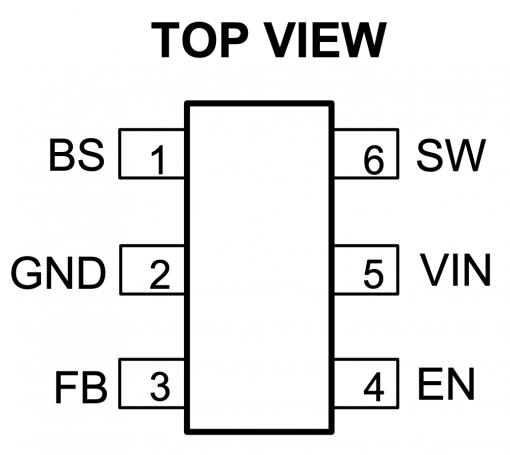

Package Type

SOT23-6L
Remark
Comp/ADJ

特色功能

  • 1.5A Peak Output Current
  • 0.3Ω Internal Power MOSFET Switch
  • Stable with Low ESR Output Ceramic Capacitors
  • Up to 92% Efficiency
  • Fixed 1.4MHz Frequency
  • Current Mode Operation
  • Cycle-by-Cycle Over Current Protection t
  • Wide 4.5V to 24V Operating Input Range
  • Over-Temperature Protection
  • Output Adjustable from 0.81V to 15V
  • 0.1uA Shutdown Current
  • Available in SOT23-6 Packages
  • RoHS Compliant

應用範圍

  • Distributed Power Systems
  • Battery Charger
  • OLPC
  • Netbook
  • Pre-Regulator for Linear Regulators
  • WLED Drivers
