1.25MHz, 2A, High Efficiency PWM Step-Down DC/DC Converter - AN6032

AN6032 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency. The internal switch and synchronous rectifier are integrated for high efficiency. AN6032 can supply 2A of load current from 2.7V to 5.5V supply voltage. The switching frequency is set at 1.25MHz, allowing the use of small surface mount inductors and capacitors. It can run 100% duty cycle for low dropout application. AN6032 is available in a DFN3X3-10 package.

AN6032

Rectified Type

SYNC 1CH

Vin(Min)[V]

2.7

Vin(Max)[V]

5.5

Vout(Min)[V]

0.6

Vout(Max)[V]

5.5

Current[A]

2

Freq(Min)[MHz]

Freq(Max)[MHz]

Freq(Typ)[MHz]

1.25

Efficiency[%]

95

Package Type

DFN3x3-6L
Remark
Comp/ADJ/PSM

特色功能

  • 2.7V to 5.5V Input Voltage Range
  • High Efficiency: Up to 95%
  • 1.25MHz Constant Switching Frequency
  • 2A Available Load Current
  • 100% Duty Cycle in Dropout
  • Current Mode Control
  • Short Circuit Protection
  • Thermal Fault Protection

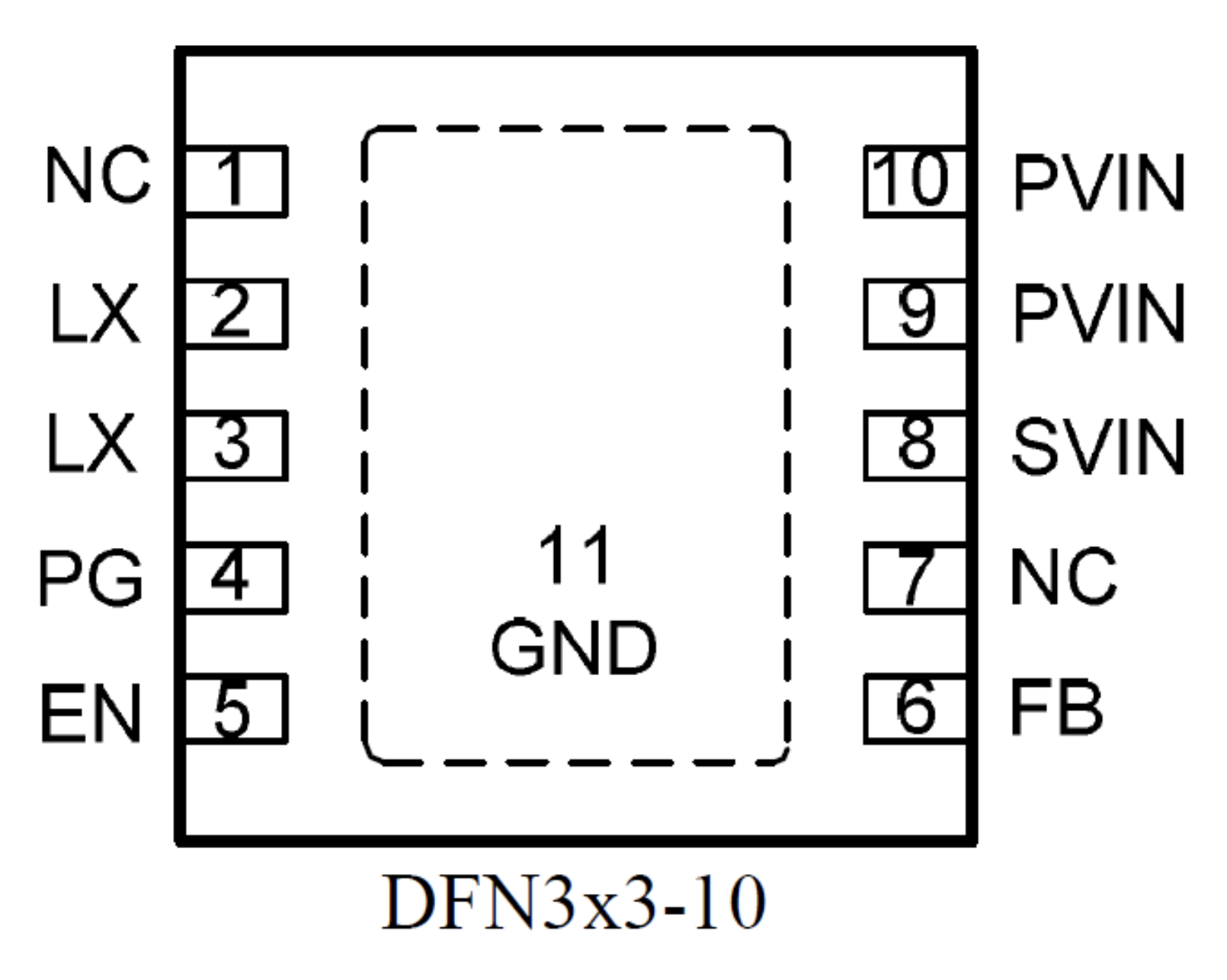

  • Compact package: DFN3X3-10

應用範圍

  • Set Top Box
  • LCD TV
  • Access-Point Router
  • Mini-notebook PC
  • Tablet PC
